CEM120EC2

CEM120EC2

$8,698.00
$8,698.00 $8,698.00
Sale Sold out
Shipping calculated at checkout.

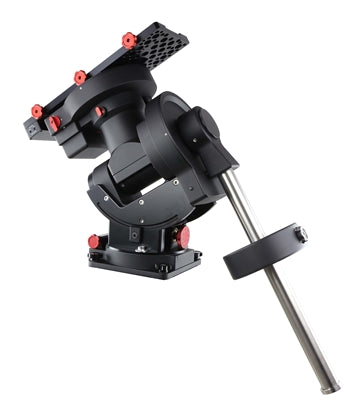

An extraordinary innovation in mount design...Now with a new payload!

Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, we created the iOptron CEM120EC. It offers the benefits of our revolutionary “center balance” design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 115 lbs (52 kg). The “center balance” design’s natural stability is due to its focusing the mount along with payloads weight directly over the center of the pier or tripod.

The CEM120EC2's performance is demonstrated by its low periodic tracking error of <0.15 arcsec RMS. Along with the stability aspect, the CEM120EC2 features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. They also add some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes.

The CEM120EC2 utilizes two high resolution encoders, one on each axis. The two encoders enable the mount to point to an object with a simple push-to by releasing the gear switches, when the mount is powered on. Fixed home sensors on each axis, allow the mount to save alignment models after power off to be used on future nights.

Optional heavy duty Tri-Pier 360 and Permanent Pier are available for order.

Optional Tri-Pier adapter for light weight payload ( 8036-120) is also available. It can be modified for permanent pier mounting.


Features
  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Observatory astrophotography mount ideal for both visual and Astro-photographers
  • Payload of 115 lbs (52 kg) with the mount weight of 57 lbs (26 kg)
  • Easy to use and reliable gear clutches
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • Polar alignment routine for those who can't see the Pole Star
  • Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • Dual high precision encoders on both RA and DEC
  • High precision tracking with low periodic error (PE)<0.15 arcsec RMS
  • Real time periodic error correction (RPEC)
  • 32-channel Global Positioning System (GPS)
  • Built-in WiFi and LAN for remote operation
  • Integrated ST-4 autoguiding port

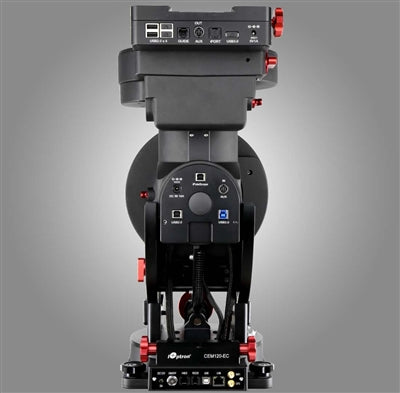

  • Advanced cable management system with more choices
  • Spring loaded, individual adjustable Losmandy saddle

Technical Specs

Mount Center-balanced Equatorial Mount (CEM)
Payload1 52kg (115 lbs), exclude counterweight
Mount weight 26kg (57 lbs)
Payload/Mount weight ratio 2
Material All metal
Latitude adjustment range 2 0°~ 68° (0.5 arcmin division)
Azimuth adjustment range ± 5° (3 arcmin division)
PE (by encoder) 3 < 0.15 arcsec RMS
Worm period 240 sec
PEC Real time PEC (RPEC)
Right Ascension worm wheel Φ216mm, 360 teeth, zero backlash
Declination worm wheel Φ216mm, 360 teeth, zero backlash
Worm Φ26mm
Right Ascension axle Φ80mm, steel
Declination axle Φ80mm, steel
Right Ascension bearings Φ125mm
Declination bearings Φ125mm
Counterweight shaft Φ38.1x 540 mm (SS, anti-slip, 4.5kg)
Counterweight 10 kg (22 lbs)
Mount base size 210 x 230 mm
Motor drive Precision stepper motor w/128 micro-step
Encoder Resolution 0.035 arc seconds
Motor Resolution 0.07 arc seconds
Slew speed 4°/sec (960x) max.
Hand Controller Go2Nova® 8410, 8 line 21 character LCD
Power requirement 4 DC 12V, 5A
Power consumption 0.7A(Tracking),1.8A(GOTO)
Polar Scope Optional iPolar electronic polar scope
Meridian treatment Stop (0-14° pass), auto flip
Zero position Automatic zero search
Park position Horizontal, vertical, current, alt/azi input
Level indicator YES
Dovetail saddle Losmandy D, 17.2" (437mm)
GPS YES
Guiding port ST-4
Communication port RS232, USB, LAN, WiFi
Cable management 2xDC12V (1A), 2xDC (5A), ST4, 6P6C, 2xUSB2.0, 3xUSB3.0, USB for PS, AUX
Operation temperature -10°C ~ +40°C
Pier/Tripod Optional pier
Warranty Two year limited

1. OTA size and length dependent.
2. If you latitude is <10°,please contact iOptron for low latitude CW (#7326LL).
3. Measured with encoder on the bench, 240 seconds.
4. Included AC adapter is for indoor use only.
