G11 MOUNT WITH GEMINI 2 GOTO DRIVE SYSTEM

G11 MOUNT WITH GEMINI 2 GOTO DRIVE SYSTEM

Regular price $3,395.00
Regular price $3,395.00 Sale price $3,395.00
Sale Sold out
Shipping calculated at checkout.



G11G Equatorial Head, Gemini 2 Goto, Weight Shaft, Folding HD Tripod and 21 lb. weight.

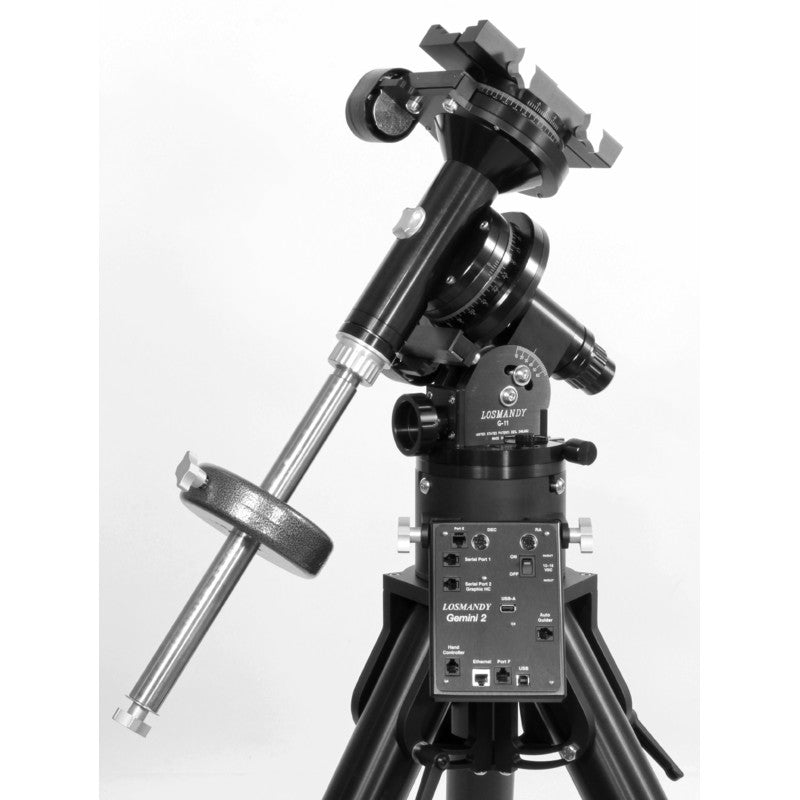

The Losmandy G11G Equatorial Mount is a robust astrophotography mount made in the USA. Here are its key features:

  • Weight Capacity: It can handle up to 60 lbs for astrophotography.
  • Construction: All machined aluminum and stainless steel, black anodized. Stainless steel hardware.
  • Bearings: Includes needle thrust bearings and ball bearing housed ground high precision brass worm.
  • Tangent Arm Design: Unique altitude adjustment with a large knob for easy alignment.

  • SPECIFICATION: R.A. / DEC. AXIS

    • All machined aluminum and stainless steel, black anodized.
    • All stainless steel hardware.
    • One 3.750” diameter needle thrust bearing.
    • One 2.000” diameter needle thrust bearing.
    • Two 1.500” diameter needle bearings.
    • 5.625” diameter, 7075 aluminum worm gear, 360 tooth.
    • Dual supported, ball bearing housed ground High Precision Brass Worm.
    • One Piece Worm Block
    • Spring Loaded Worm
    • Variable slip clutch, both axes. One knob per axis design.
    • Porter Slip Ring Design
    • 1.250” diameter stainless steel shafts.
    • Through the axis polar scope mounting, works in Northern and Southern Hemisphere. Polar scope optional.
    • Instrument Weight Capacity 60 LBS
    • Equatorial head weight 33 lbs.



Single knob azimuth control, bi-directional +/- 8.5 degree.

The Gemini II system turns the G11 into a full go-to computerized mount, allowing precise tracking and easy object finding. It’s a great choice for serious astrophotographers!

GEMINI 2 GOTO ELECTRONICS (G)

  • Full Color Graphic Touch Screen clearly displays all functions.
  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and tactile membrane on the rear.
  • Periodic Error Correction (PEC).
  • Programmable DEC. Backlash Compensation (TVC).
  • Control panel dimmer, Day and Night Modes.
  • Accepts auto-guider systems.
  • Northern and Southern Hemisphere operation.
  • Tiltable control panel for easy access.
  • Stand Alone System. No PC required
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or Serial Port
  • DC Servos for improved accuracy with higher torque than steppers
  • Non-Volatile Memory and Real-Time Clock
  • English, German, French & Spanish displays
  • Over 40,000 objects
  • USB ports; Virtual COM to PC, ASCOM or planetarium program.
  • Firmware upgrade via internet
  • Auto Guide Port (TTL)
  • Dual 12-18V DC input/output (3.0A)

Removable stainless steel 1-1/4 inch diameter weight shaft w/safety knob.

21 lb counterweight.

7 lb and 11 lb extra counterweights available

.
