Q-Focuser

Q-Focuser

Regular price $199.00
Regular price $199.00 Sale price $199.00
Sale Sold out
Shipping calculated at checkout.
Overview

QFocuser incorporates curves into its body design, adding a touch of elegance to its small size.



The QFocuser is exceptionally small!

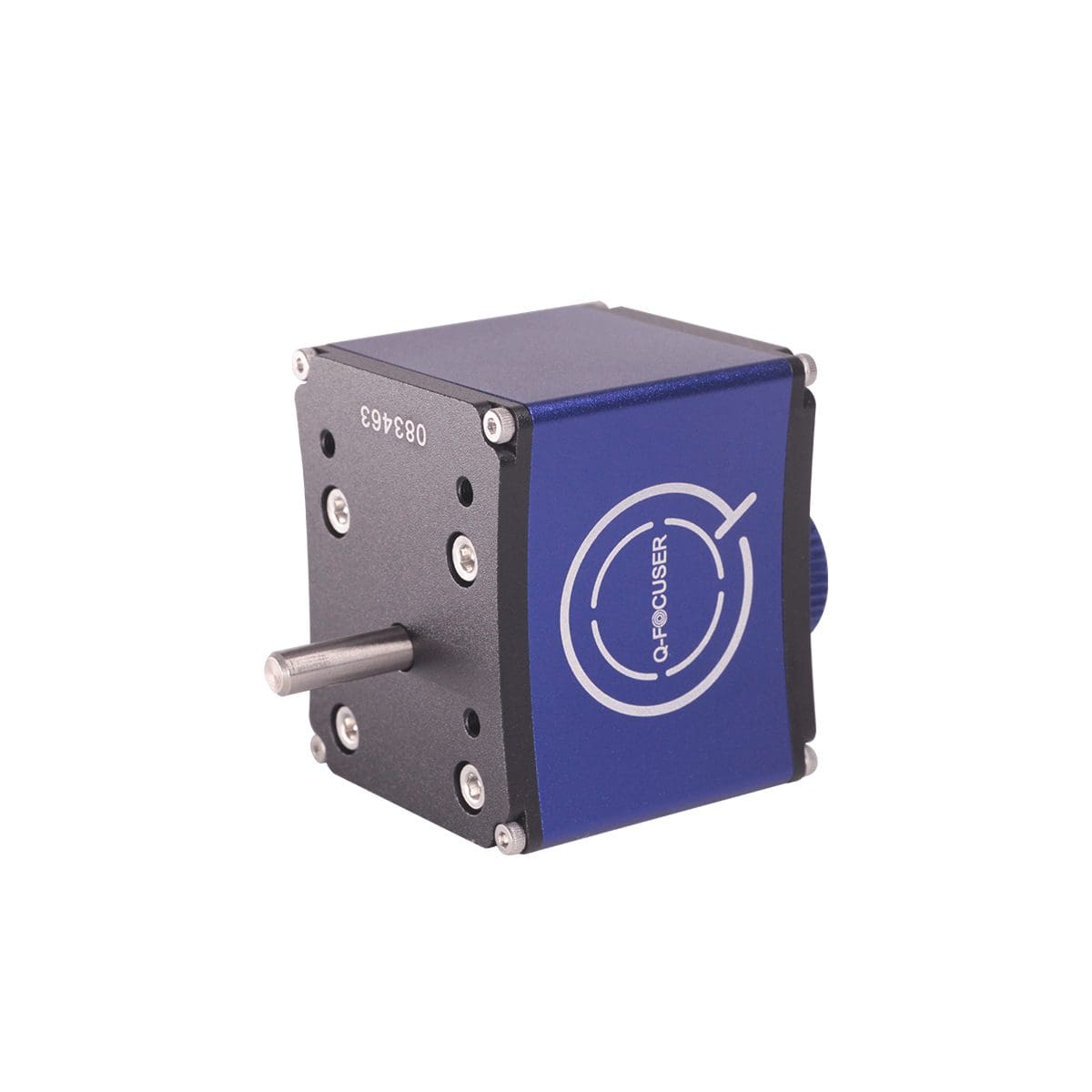

The QHY Q-Focuser is an electronic focuser designed for motorized fine focus control. It comes in two versions:

  1. Standard Version:

    • The Standard Version is designed to be installed on the side of the standard adjustment axis of the telescope focusing mechanism. This configuration aligns with most focusers available in the market.
    • It features a reducing motor capable of carrying up to 10 kg.

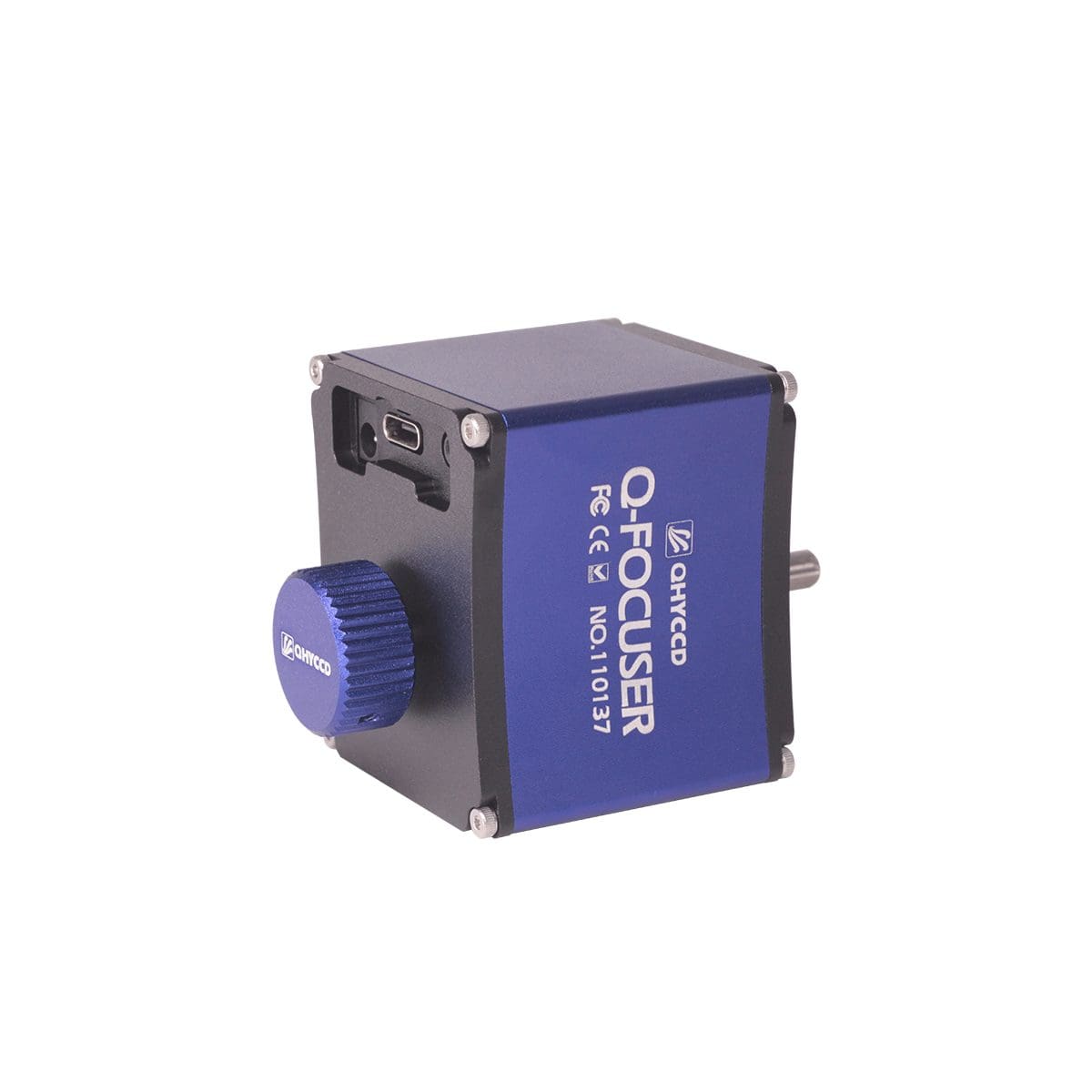

    • Unlike some other electric focusers, the Standard Version allows manual adjustment even after installation on the telescope. You can fine-tune the focus without needing a power connection or a clutch switch.
  2. High Precision Version:

    • The High Precision Version is installed on the precise adjustment axis of the telescope focusing mechanism.
    • It uses a non-reducing motor, which minimizes backlash. Backlash calculations consider the entire focusing system, including the motor mount. Since this version lacks mechanical reduction gears, the added backlash from the motor is nearly zero.
    • When paired with a good focusing mount, the entire system operates with almost zero backlash.
    • In NINA (a popular astrophotography software), the autofocus process runs smoothly with the High Precision QFocuser set to zero backlash.

Installation Options:

  • The QFocuser features multiple holes on its bottom and side, allowing various fixing methods.
  • Its flexible structure enables adjusting the fixed hole positions and mounting plate height for optimal compatibility with your telescope.

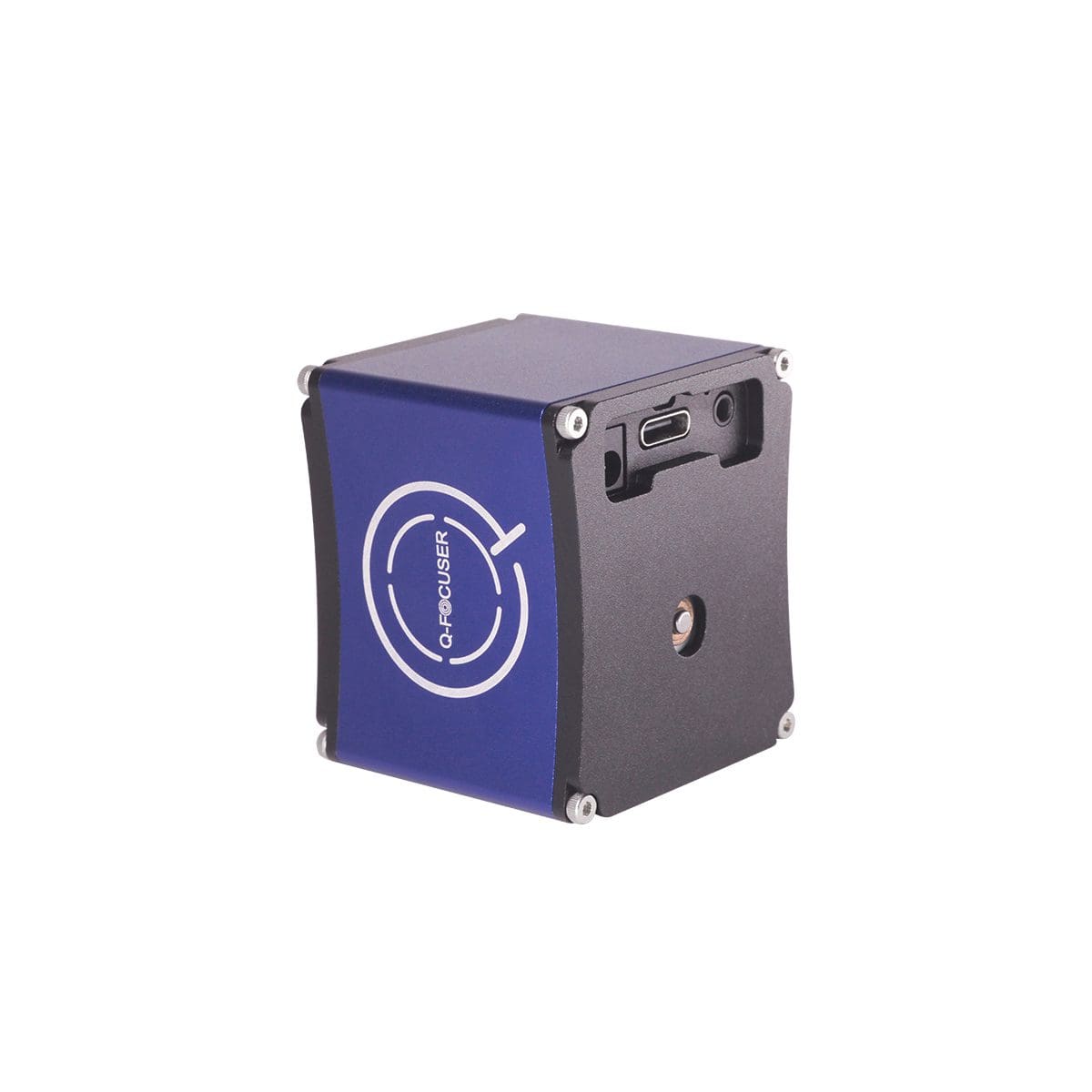

Power Options:

  • The QFocuser can be powered in two ways:
    • TypeC-5V: USB 5V power, sufficient for most cases.
    • 12V DC: For users who require additional power.
  • Both versions support an external temperature sensor (included) for temperature monitoring.

The QHY Q-Focuser combines functionality, precision, and adaptability for astronomers and astrophotographers alike.

QFocuser (Standard Version)





Another advantage of QFocuser High Precision Version is that it allows the entire system to achieve almost zero backlash. Backlash calculations involve the entire focusing system, including the focus motor mount, not just the electronic focuser itself. Backlash will exist if there are mechanical gears in the focusing system. Since the High precision QFocuser uses a non-reducing motor (i.e., no mechanical reduction gears) the added backlash from the motor is almost zero. Then, if a good focusing mount is used, the entire focusing system will operate with almost zero backlash. According to our test in NINA, with the backlash set to 0 in the Autofocus settings, the autofocus process runs smoothly.

Multiple Installation Options

QFocuser features several holes on its bottom and side, providing a variety of fixing methods. Unlike mounting plates with fixed holes, QFocuser adopts a flexible structure where the fixed holes position and mounting plate height can be freely adjusted to achieve the best compatibility with your telescope.

Software and Interface

QFocuser can be powered in two ways: TypeC-5V and 12V DC. The USB 5V power is enough in most cases. Both the standard version and precision version support an external temperature sensor (included) for users who require temperature monitoring.

Additionally, a manual controller will be available as an optional accessory in the near future. This item allows direct operation of the electronic focuser without the need to connect it to a computer or touch the focuser.

Currently, QFocuser supports both Windows (with ASCOM drivers) and Linux systems. In the ASCOM driver, we have integrated basic functions such as move, custom current position, limit switches, torque maintenance, and temperature display, etc. It can also be controlled through other third-party software.



Specification
Version QFocuser(Standard Version) QFocuser(High Precision Version)
Body Size/mm About 43*39*50 About 43*39*50 (excluding the button)
Weight About 210g About 265g
Motor Reducing motor Non-reducing motor
Backlash It has some backlash, which can be calibrated in software like NINA  Almost zero backlash*
Max. Loads About 10kg About 7.5kg
Manually Focus After Installing Not supported Supported
System Supported Windows (ASCOM)



Linux

External Temperature Sensor Supported
Data Interface USB2.0 Type-C
Power Supply 5v/12v
What’s in the box

QFocuser Standard Version:

QFocuser High Precision Version:



User Guide
Hardware Installation
  1. Remove the precise/coarse adjustment knobs from the focuser mount of your telescope, and install the coupler to the focusing bearing.
  2. Install the long mounting plate on the focuser body and fix it with screws.3. Connect the motor shaft of the electronic focuser to the telescope’s focusing bearing through the coupler.4. Adjust the installation height and secure it tightly with small mounting plates and screws.
Driver and Software

Product Driver Operating Environment:

Computer System: Windows 7 and later versions

Software Version: ASCOM platform version 6.5 and above

Third-party Software Support: Supports N.I.N.A., MaxDL, and other third-party software that supports the ASCOM platform.



Product Connection and Use (Using ASCOM driver version 6.5 and NINA 2.2 as examples):

  1. Remove the fine-tuning knob of the astronomical telescope’s focusing mount. Use couplers to connect the motor shaft of the electronic focuser to the focusing shaft of the telescope. Use the mounting plate to connect the body of the electronic focuser to the body of the telescope securely.
  2. Download and install drivers and software:

a. Download and install the ASCOM platform (version 6.5 or above) on your computer. Official download link: https://www.ascom-standards.org/

b. Install the ASCOM driver for the electronic focuser. Note: Do not connect the electric focuser to the computer during the driver installation.

https://www.qhyccd.com/file/repository/ASCOM/QFOCUS-ASCOM-Platform6-V23.10.26.17.exe

c. Download and install the third-party software, using NINA as an example here. Official download link: https://nighttime-imaging.eu/

d. Download and install the system driver for the electronic focuser: USB_Virtual_Com_Port_Driver. Official download link: https://www.qhyccd.com/file/repository/publish/qfoc/USB_Virtual_Com_Port_Driver_v2.0.2.2673.rar

  1. Connect the electronic focuser to the computer using a USB-C cable.

4. Open NINA and select “Equipment”-“Focuser”-“QFocuser-Ascom”

5. Click the button

to start the basic operations and parameter setup for the electronic focuser.



The ASCOM control interface of the QFocuser includes some basic control options. Most of these functions can also be operated within third-party software. If the third-party software you use does not support some of these features, you can operate them in the ASCOM control interface. The following is based on the ASCOM control interface:

a. Connect: Click “Auto,” and the system will automatically detect the COM port occupied by the QFocuser and display it in green to indicate successful recognition. If automatic recognition fails, you can invoke the computer’s device manager to view the COM port where the QFocuser is located and manually select it from the drop-down menu.

b. Language: Select English or Chinese in the upper right.

c. Move: Enter a number in the box as the number of steps to move at once. The left arrow indicates moving X steps in one direction, and the right arrow indicates moving X steps in the opposite direction. Check “Revert,” and the rotation direction of the electric adjustment axis will be opposite to the default direction. Check “High Speed,” and the electric adjustment will move at a faster speed.

d. Current Position: The position coordinate of the electric adjustment currently recorded by the system.

e. Custom Position: Change the current position coordinate to any number greater than or equal to 0. For convenience, if the current position of the telescope focus tube is at its limit, we recommend changing the position to 0; if it is near the focus point, we recommend changing it to a larger number, like 2000, to facilitate software autofocus. This position will also become the center position for the Limit function.

f. Limit: Limits before and after the custom position. For example, entering “500” in the limit number column means the focuser’s movement range will be restricted to ± 500 steps from the custom position, and it won’t move beyond this. This setting primarily prevents the electronic focuser from turning too far and damaging the telescope’s focusing structure in some cases.

g. Keep Force: If checked, the electronic focuser motor will remain powered even when stationary. This is for situations where the electronic focuser has a large load, and the motor might rotate backward when not powered or to maintain mechanical temperature in cold environments.

h. Out Sensor: Only check this option when an external temperature sensor is connected. The current ambient temperature will be displayed here. If checked without connecting the temperature sensor, a reading error will occur.

6. After configuration, click “OK”. Click the buttonto connect the focuser to NINA. If successfully connected, a notification will appear in the bottom right corner of the software. Then you can further set auto-focus related parameters in NINA > Options > Autofocus, such as focus method, exposure settings, backlash adjustments, etc. For details, please refer to the official NINA software tutorial.

Review
