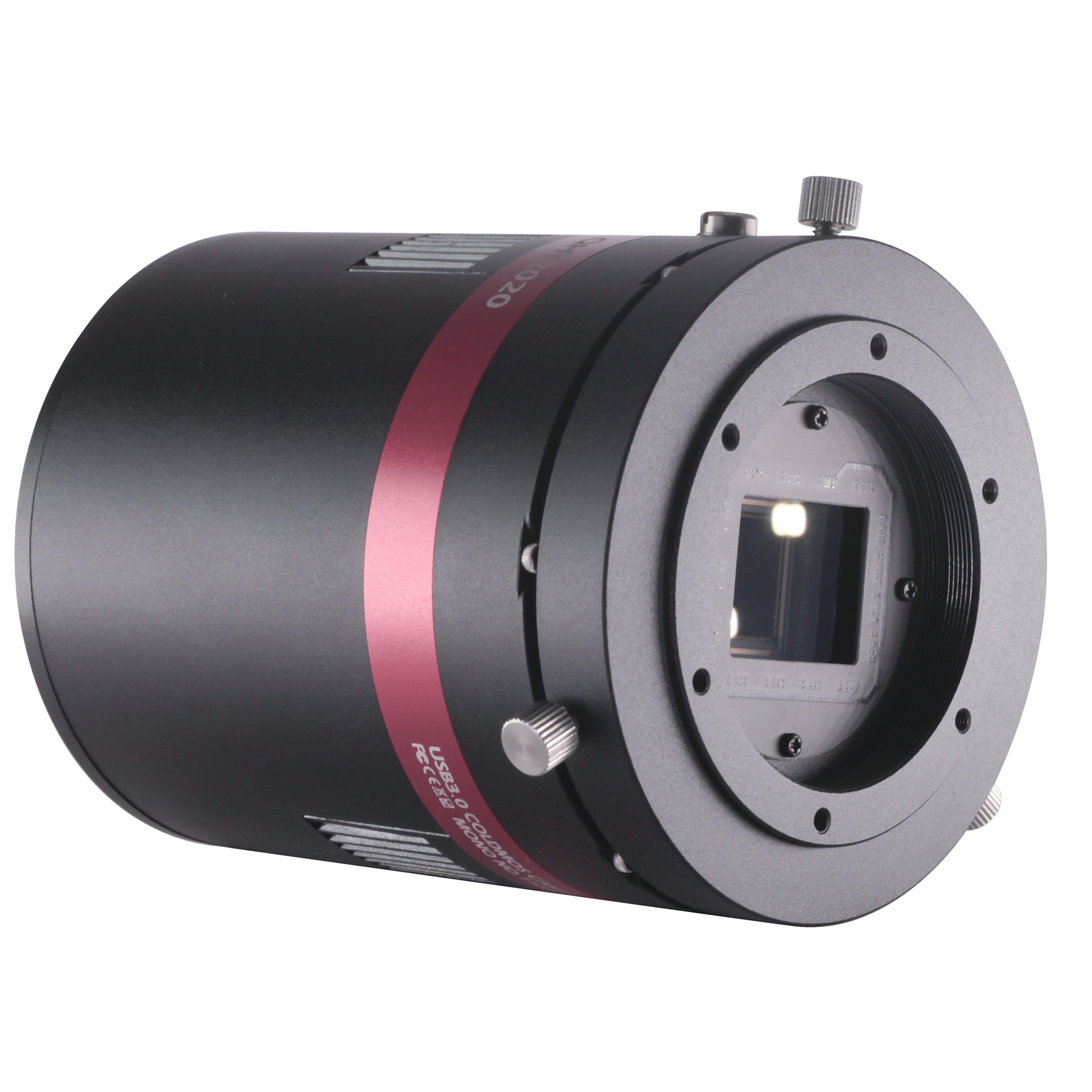

The QHY2020 is a cooled scientific CMOS camera equipped with the GSENSE2020 back-illuminated CMOS sensor. Let’s explore its features:

  1. Sensor and Resolution:

  2. Special EUV/Soft X-ray Version:

  3. Dual Gain Mode:

  4. Frame Rates and HDR Mode:

    • The standard version of the QHY2020 uses a USB 3.0 interface.
    • It can achieve a maximum frame rate of 33 frames per second for single-channel 12-bit images or 21.5 frames per second for dual-channel 12-bit images (HDR mode).
    • The camera also supports selected regions of interest (ROI) for even faster rates, such as 450 FPS at 128 lines or 1460 FPS at 32 lines.
    • Customizable line readout modes are also available1.
  5. Cooling System:

  6. Optic Window and Adapters:

In summary, the QHY2020 is a versatile scientific CMOS camera suitable for spectrum analysis, fluorescence imaging, and specialized EUV/X-ray applications. Its high QE, low read noise, and flexible frame rates make it a valuable tool for astrophotography and scientific research12. You can find more information about this camera on the QHYCCD website.

Model QHY2020 / QHY2020EUVX
CMOS Sensor Gpixel Gense2020 BSI / Gesen2020 BSI-PS
Pixel Size 6.5um x 6.5um
Sensor Surface Glass Clear Glass  /  Non-Glass
Effective Pixel Area 2048 x 2048
Effective Pixels 4 Megapixels
Effective Image Area 13.3mm x 13.3mm
Fullwell 56ke-
AD Sample Depth Dual 12-bit A/D (High Gain Channel and Low Gain Channel) *
QE QHY2020
94% peak QE.  60% @ 800nm     38% @ 900nm    60% @ 240nm
90% to 99% at 1.2nm to 15nm     35% @ 200nm    68% @ 600-700nm    50% @800nm    40%@900nm
Full Frame Rate and ROI Frame Rate Full Frame Rate

(Clock 3, STD mode,  12bit, DDR ON)  2048*2048 32.5FPS
(Clock 2, STD mode,  12bit, DDR ON)  2048*2048 25FPS
(Clock 1, STD mode,  12bit, DDR ON)  2048*2048 21.5FPS
(Clock 0, STD mode,  12bit, DDR ON)  2048*2048 15 FPS

(Clock 1, HDR mode,  2*12bit, DDR ON)  4096*2048  21.5FPS
(Clock0 , HDR mode,  2*12bit, DDR ON) 4096*2048 15FPS

Hardware ROI Frame Rate *

(Clock 3, STD mode,  12bit, DDR ON)
2048 Lines   32.5FPS   (eg. 2048*2048)
1024 Lines   63FPS      (eg. 2048*1024, 1024*1024 etc)
512 Lines     124FPS    (eg. 2048*512, 1024*512 etc)
256 Lines     243FPS
128 Lines     460FPS
64 Lines       840FPS
32 Lines       1460FPS

(Clock 1, HDR mode,  2*12bit, DDR ON)

2048 Lines   21.5FPS   (eg. 2048*2*2048)
1024 Lines   63FPS      (eg. 2048*2*1024
512 Lines     83FPS      (eg. 2048*2*512)
256 Lines     156FPS
128 Lines     308FPS
64 Lines       560FPS
32 Lines       980FPS

*note: Hardware ROI support need upgrade the MAX10 FPGA codes. (>=V2020.3.18) and Need the System Driver >=2020.3.14 and SDK>=2020.3.14

Readout Noise 1.6e-
Dark Current TBD
Exposure Time Range 20us – 300sec
Shutter Type Electric Rolling Shutter

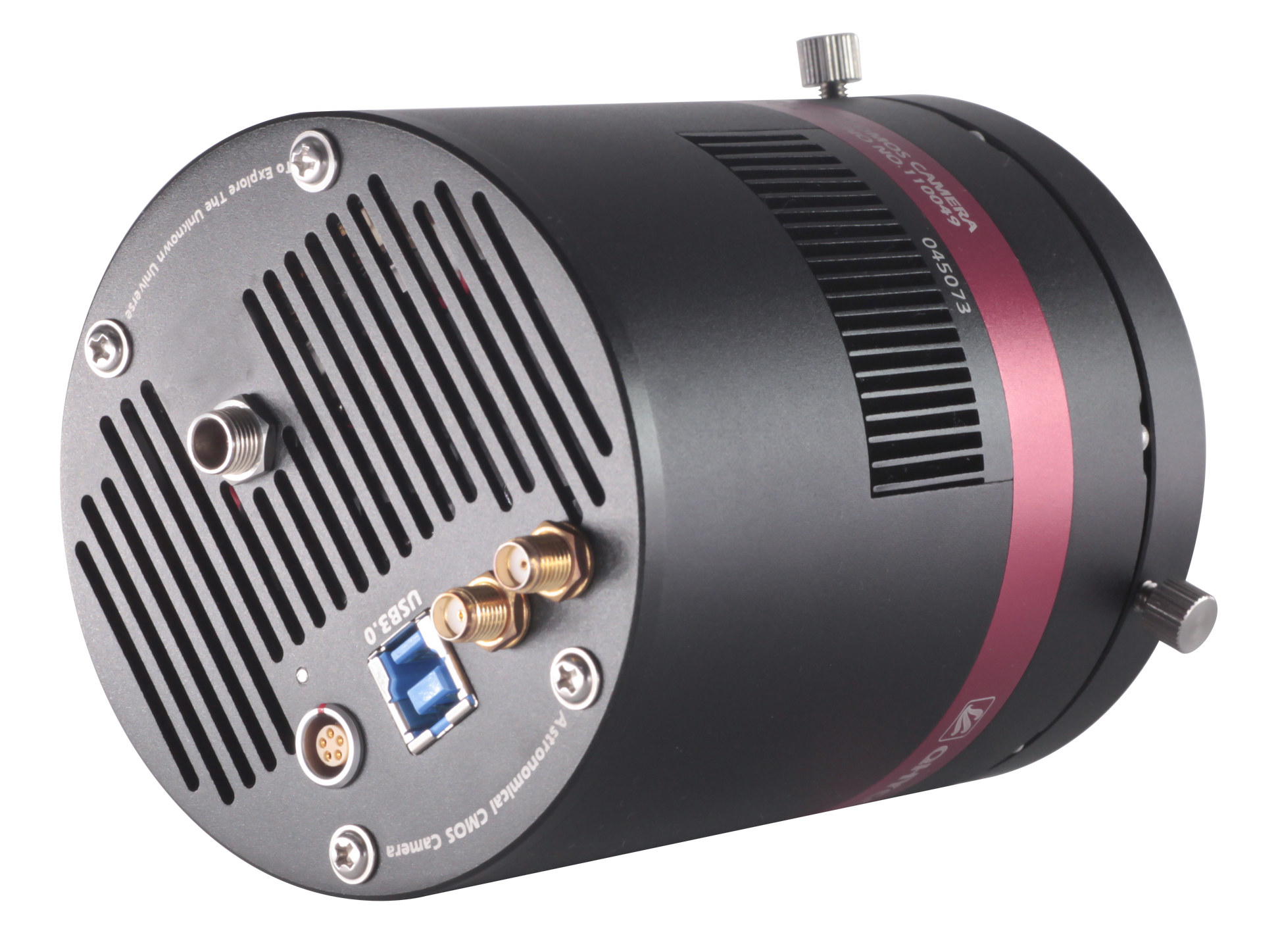

Computer Interface USB3.0
Built-in Image Buffer 128MB DDR2
Cooling System Dual Stage TE Cooler(-40C below ambient)

(Test temperature +20°)

Anti-Dew Heater Yes
Telescope Interface M54/0.75 female thread on the fast installer/center adjust ring
Optic Window Type AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 16mm(±0.5)
Weigth 750g
