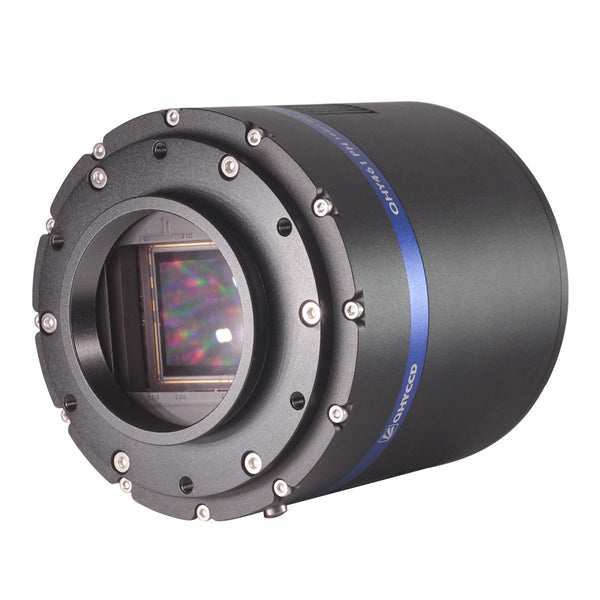

QHY461M PH

QHY461M PH

Regular price $10,800.00
Regular price Sale price $10,800.00
Sale Sold out
Shipping calculated at checkout.
Please beware this is a special-order product, 4-6 weeks to deliver.

Overview

The QHY461M PH is a high-resolution monochrome BSI (back-illuminated) CMOS camera designed for astrophotography. Let’s explore its impressive features:

In summary, the QHY461M PH combines high resolution, low noise, and efficient cooling, making it an excellent choice for serious astrophotographers and scientific researchers

Native 16 bit A/D: The new Sony sensor has native 16-bit A/D on-chip. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, a 16-bit A/D yields higher sample resolution and the system gain will be less than 1e-/ADU with no sample error noise and very low read noise.


BSI: One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. In a typical front-illuminated sensor, photons from the target entering the photosensitive layer of the sensor must first pass through the metal wiring that is embedded just above the photosensitive layer. The wiring structure reflects some of the photons and reduces the efficiency of the sensor. In the back- illuminated sensor the light is allowed to enter the photosensitive surface from the reverse side. In this case the sensor’s embedded wiring structure is below the photosensitive layer. As a result, more incoming photons strike the photosensitive layer and more electrons are generated and captured in the pixel well. This ratio of photon to electron production is called quantum efficiency. The higher the quantum efficiency the more efficient the sensor is at converting photons to electrons and hence the more sensitive the sensor is to capturing an image of something dim.

Zero Amplify Glow: This is also a zero amplifer glow camera.


TRUE RAW Data: In the DSLR implementation there is a RAW image output, but typically it is not completely RAW.  Some evidence of noise reduction and hot pixel removal is still visible on close inspection.  This can have a negative effect on the image for astronomy such as the “star eater” effect.  However,  QHY Cameras offer TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs and other scientific imaging applications.

Anti-Dew Technology: Based on almost 20-year cooled camera design experience, The QHY cooled camera has implemented the fully dew control solutions. The optic window has built-in dew heater and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.

Cooling: In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise.


Advanced Functions

Multiple Readout Modes

Multiple Readout Modes are special for QHY 16-bit Cameras (QHY600/268/461/411).  Different readout modes have different driver timing, etc., and result in different performance. See details at “Multiple Readout Modes and Curves” Part.

Random change thermal noise suppression function

You may find some types of thermal noise can change with time in some back-illuminated CMOS cameras. This thermal noises has the characteristic of the fixed position of typical thermal noise, but the value is not related to the exposure time.  Instead, each frame appears to have its own characteristics.  The QHY600/268/461/411 use an innovative suppression technology that can significantly reduce the apparent level of such noise.

UVLO Protection

UVLO(Under Voltage Locking) is to protect the electronic device from damage caused by abnormally low voltages.

Our daily life experience tells us that the actual operational voltage of an electrical device must not significantly exceed the rated voltage, otherwise it will be damaged. For such precision equipment as cameras, long-term work at too low input voltage can also be detrimental to the working life of the camera, and may even make some devices, such as power manager, burn up due to long-term overload. In the all-in-one driver and SDK after 2021.10.23 stable version, the camera will give a warning when the input voltage of the camera is below 11V.

Optimizing USB Traffic to Minimize Horizontal Banding

It is common behavior for a CMOS sensor to contain some horizontal banding. Normally, random horizontal banding can be removed with multiple frame stacking so it does not affect the final image. However, periodic horizontal banding is not removed with stacking so it may appear in the final image. By adjust the USB traffic in Single Frame mode or Live Frame mode, you can adjust the frequency of the CMOS sensor driver and it can optimize the horizontal banding appeared on the image. This optimized is very effective to remove the periodic banding in some conditions.

A typical Periodic Horizontal Noise under certain USB_TRAFFIC values.

After Adjusting the USB Traffic to avoid the periodic horizontal noise.

Reboot the camera by power off and on

The camera is designed to use the +12V to reboot the camera without disconnecting and reconnecting the USB interface. This means that you can reboot the camera simply by shutting down the +12V and then powering it back on. This feature is very handy for remote controlling the camera in an observatory. You can use a remotely controlled power supply to reboot the camera. There is no need to consider how to reconnect the USB in the case of remote control.




Specifications
Model QHY411 QHY461
Image Sensor SONY IMX411 BSI CMOS Sensor SONY IMX461 BSI CMOS Sensor
Pixel Size 3.76um x 3.76um 3.76um x 3.76um
Color / Mono Version Both Available Both Available
Image Resolution 14304 x 10748 (Inlcudes the optic black area and over scan area) 11760 × 8896
Effective Pixels 151 Megapixels 102 Megapixels
Effective Image Area 54mm x 40mm 44mm x 33mm
Sensor Surface Glass AR+AR multi-coating Clear Glass AR+AR Multi-Coating Clear Glass
Full Well Capacity (1×1, 2×2, 3×3) 50ke- / 200ke- / 450ke- in Standard Mode
80ke- / 320ke- / 720ke- in Extend Fullwell Mode
50ke- / 200ke- / 450ke- in Standard Mode
80ke- / 320ke- / 720ke- in Extend Full Well Mode
A/D 16-bit (0-65535 greyscale) 16-bit (0-65535 greyscale) for 1X1Binning

18bit in 2X2   19BIT in 3X3  20BIT in 4*4 software Binning

Sensor Size TYPICAL 4.2inch TYPICAL 3.4inch
Read Noise Apporx 1 to 3 e (in HGC Mode) 1e to 3.7e (in HGC mode)
Dark Current Apporx 0.0011e/pixel/sec at -20C Approx 0.003e/pixel/sec @ -20C
Exposure Time Range 20us – 3600sec 50us – 3600sec
Frame Rate USB3.0 Mode

2.1FPS@14304*10748 8Bit  1FPS@14304*10748 16Bit

4.5FPS@5000*5000 8Bit    2FPS@5000*5000 16Bit

10FPS@2048*2048 8Bit    5.5FPS@2048*2048 16Bit

3×3 onchip BIN 12bit

20FPS@4736*3548 8Bit    10FPS@4736*3548 16Bit

34FPS@2048*2048 8Bit    18FPS@2048*2048 16Bit

63FPS@1080*1080 8Bit    32.5FPS@1080*1080 16Bit

PCIE Mode

2.1FPS@14304*10748 8Bit  1FPS@14304*10748 16Bit

4.5FPS@5000*5000 8Bit    4.5FPS@5000*5000 16Bit

10FPS@2048*2048 8Bit    10FPS@2048*2048 16Bit

3×3 onchip BIN 12bit

20FPS@4736*3548 8Bit    11FPS@4736*3548 16Bit

34FPS@2048*2048 8Bit    28FPS@2048*2048 16Bit

52FPS@1080*1080 8Bit    52FPS@1080*1080 16Bit

2.7FPS @ 8BIT   1.3FPS@16BIT  on USB3.0
2.7FPS @ 16BIT   6FPS @ 14BIT on 10Gigabit Fiber
Shutter Type Electric Rolling Shutter Electric Rolling Shutter
Computer Interface USB3.0 and 2*10Gigabit Fiber USB3.0 and 2*10Gigabit Fiber
Trigger Port Programmable TrigOut, High Speed Sync Port / GPS interface Port Programmable TrigOut, High Speed Sync Port / GPS interface Port
Filter Wheel Interface 4PIN QHYCCD CFW Port 4PIN QHYCCD CFW Port
Built-in Image Buffer 2GByte 2GByte
FPGA Upgrade Via USB Support Support
Cooling System Dual Stage TEC cooler(-35C below ambient with air cooling, -45C below ambient with ambient temperature water cooling). More deltaT below ambient can be achieve by using the cooled water cooling.

(Test temperature +20°)

Fan Cooling/Water Cooling Compatible

Dual Stage TEC cooler(-35C below ambient with air cooling, -45C below ambient with ambient temperature water cooling). More deltaT below ambient can be achieve by using the cooled water cooling.

(Test temperature +20°)

Fan Cooling/Water Cooling Compatible

Recommended flow rates for water-cooled versions 12ml/s 12ml/s
Anti-Dew Heater Yes Yes
Telescope Interface Six Screw holes  (See mechanical drawing) Six Screw holes  (See mechanical drawing)
Optic Window Type AR+AR High Quality Multi-Layer Anti-Reflection Coating AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 16mm(without tilt adjust ring)

28.5mm (with tilt adjust ring)

16mm (without tilt adjust ring)28.5mm (with tilt adjust ring)
Weight 2.9kg 2.9kg
